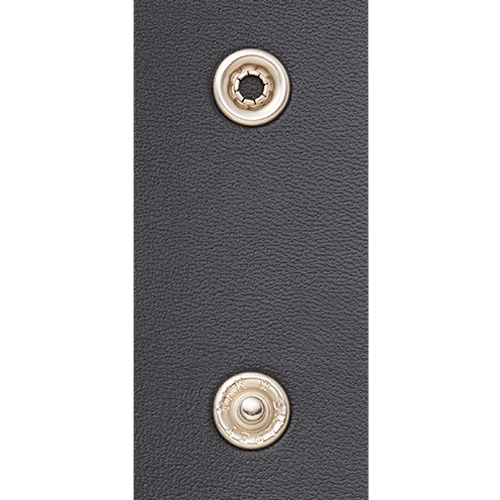

15 L Stainless Steel Snapet

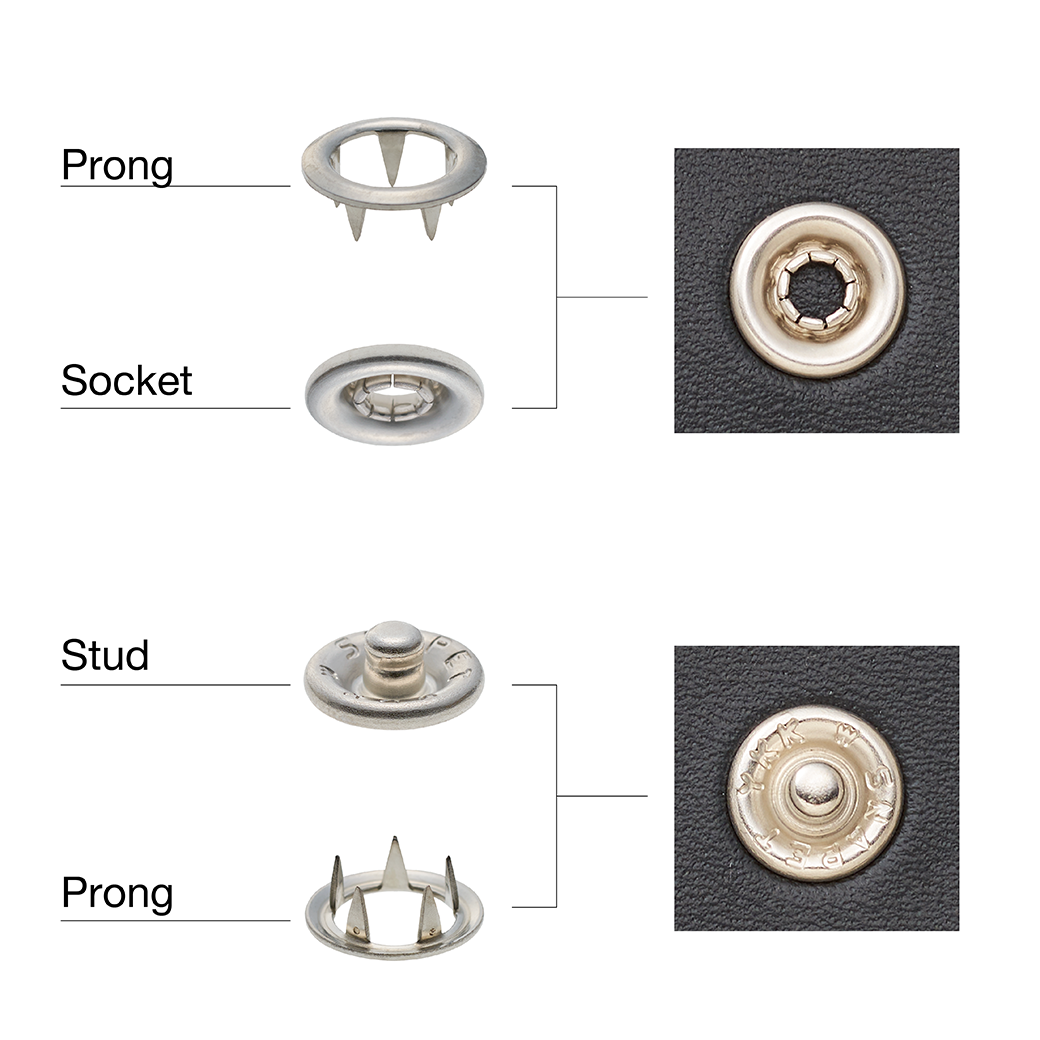

The Eco friendly (Non-Ferrous) Stainless Steel 15 L Snapet is not plated. This product is ideal for knitted, stretchable and woven fabrics. It is a 3-part snap system made up of 2 rings, a socket, and a stud. A capped or painted ring option exists.
APPLICATION
Share:
SPECIFICATIONS
Sizes: Standard size for baby wear.
| Cap | 10.4mm |
| Ring | 9.9mm |
| Socket | 9.8m |
| Stud | 9.8mm |
| Material | Stainless steel |
AVAILABILITY
| Standard | Stainless steel rings with stainless steel underparts |
| Optional | Painted rings with stainless steel underparts |
FINISHES
| Stainless steel |
| Painted rings |
HOW TO MEASURE
Cap, Ring, Socket, Stud.
Measure the diameter of each part
| Pronged Ring/Post | Socket | Stud | Pronged Ring/Post |
|---|---|---|---|
| Ref.: SPTCP15
Ref.: SPTRP15
|
Ref.: SPTSK15
|
Ref.: SPTWSD15
Ref.: SPTTSD15
|
Ref.: SPTRP15
Ref.: SPTPT15
|
PRODUCT CODES & DESCRIPTIONS (SA ONLY)
| Code | Product |
|---|---|
| 4689443 | 15L Stainless steel snapet ring |
| 4689442 | 15L Stainless steel snapet stud |
| 4689441 | 15L Stainless steel snapet socket |
| 944221 | 15L Stainless steel snapet painted ring |
| 3917465 | 15L Stainless steel snapet cap |
CATALOGUE
TECHNICAL INFO
- Consumer Product Safety Improvement Act (CPSIA) complaint.
- YKK machines and attaching dies are required to attach this product.
- The product will pass through a needle detection machine at the predetermined setting for stainless steel.
- Oeko – Tex Certified.
- Can meet 90 N separation force (depending on fabric thickness and attachment process)
NOTE
The YKK supplied machines and attaching dyes are required to ensure the appropriate level of attachment.
N6 – S Semi Auto machine – 3 500 attachments every 8 hours.
N8 – Fully Auto machine – 14 000 attachments every 8 hours.
