16 L Snapet

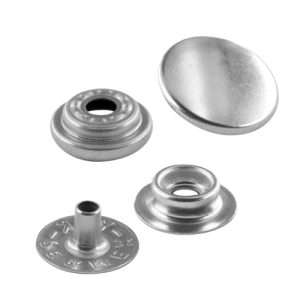

The brass 16 L Snapet is Nickle-free and Non – Ferrous. This product is Ideal for knitted, Stretchable, and Woven fabrics. It is a three-part snap system comprising two rings, a socket, and a stud. An option exists to utilize a capped or open ring.
APPLICATION
Share:
SPECIFICATIONS
Sizes: Standard size for Babywear.
| Cap | 10.8mm |
| Ring | 10mm |
| Socket | 11m |
| Stud | 11mm |
| Material | Brass-based and SPC plated |
AVAILABILITY
| Standard | Silver rings with silver underparts |
FINISHES
| Silver |
HOW TO MEASURE
Cap; Ring; Socket; Stud.
Measure the diameter of each part
| Pronged Ring/Post | Socket | Stud | Pronged Ring/Post |
|---|---|---|---|
| Ref.: SPTPI16
Ref.: SPTCP16
Ref.: SPTRP16
|
Ref.: SPTSK16
|
Ref.: SPTWSD16
Ref.: SPTTSD16
|
Ref.: SPTRP16
Ref.: SPTPT16
|
PRODUCT CODES & DESCRIPTIONS (SA ONLY)
| Code | Product |
|---|---|
| 965903 | 16L Snapet ring |
| 965902 | 16L Snapet stud |
| 965901 | 16L Snapet socket |
| 4340180 | 15L Snapet cap |
CATALOGUE
TECHNICAL INFO
- Consumer Product Safety Improvement Act (CPSIA) compliant.
- YKK machines and attaching dies are required to attach this product.
- The product will pass through a needle detection machine at the predetermined setting for brass.
- Oeko – Tex Certified.
- Can meet 90 N separation force (depended on fabric thickness and attachment process).
NOTE
The YKK supplied machines and attaching dyes are required to ensure the appropriate level of attachment.
N6 – S Semi Auto machine – 3 500 attachments every 8 hours.
N8 – Fully Auto machine – 14 000 attachments every 8 hours.
