Eyelet and Washer

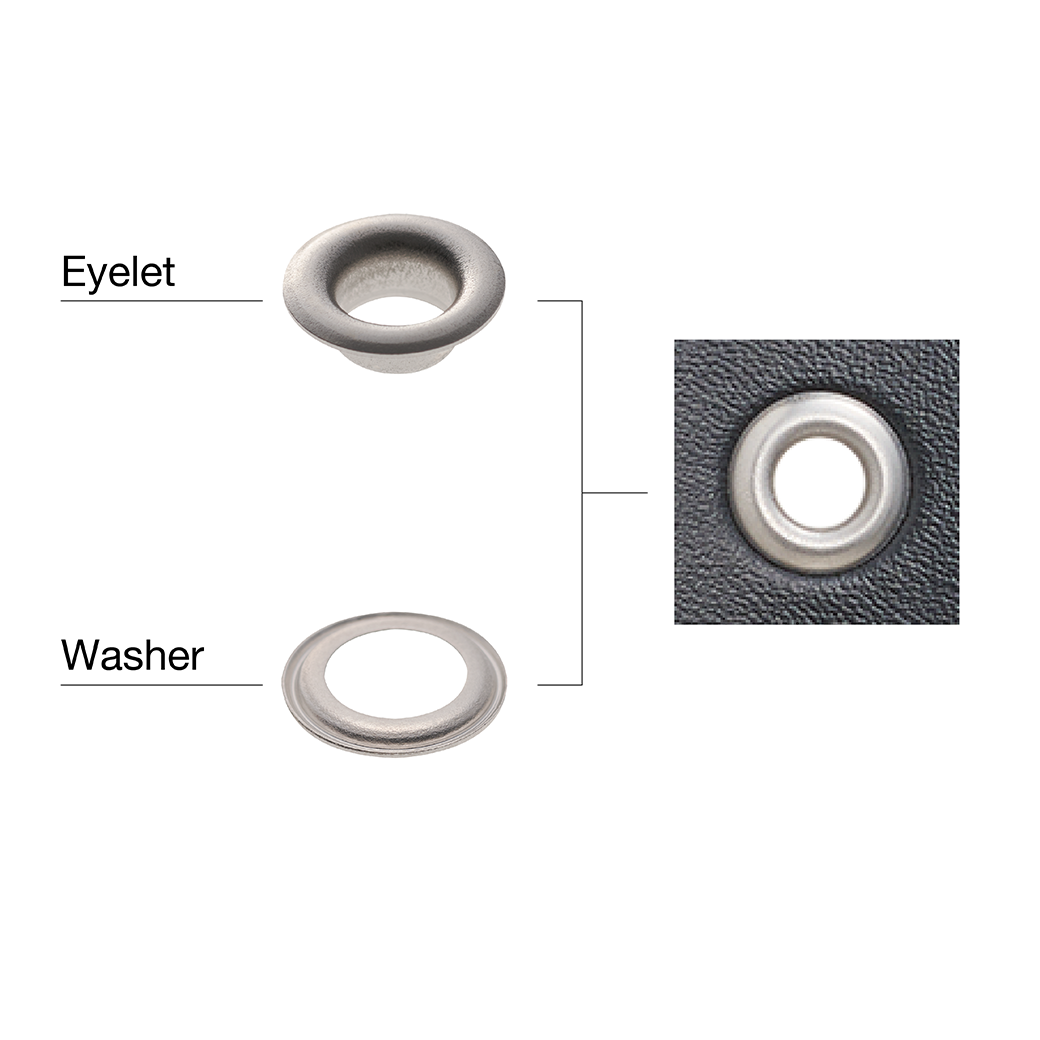

This is a two-part brass system comprising of an eyelet and washer. This combination of eyelet and washer forms a secure attachment on the fabric. The YKK eyelets are self-piercing and can be attached to elasticated fabrics.
APPLICATION
Share:
SPECIFICATIONS
Sizes: Standard sizes and available in:
| #200 Eyelet | ID 4 mm |
| #300 Eyelet | ID 5.5 mm |
| #500 Eyelet | ID 6 mm |
| #700 Eyelet | ID 8 mm |
| #1000 Eyelet | ID 10 mm |
| Material | Brass based and plated |
AVAILABILITY
| Standard | Non branded |
FINISHES
Variety of finishes available.
HOW TO MEASURE
Eyelets and Washers
Measure the diameter of each part.
- OD: Outside diameter
- ID: Inside diameter
- H: Height
| Rivet | Tack Nail |
|---|---|
 |
 |
PRODUCT CODES & DESCRIPTIONS (SA ONLY)
| Code | Product |
|---|---|
| 4357102 | #200 Eyelet BSX Finish |
| 4357103 | #200 Washer BSX Finish |
| 4327001 | #300 Eyelet BSX Finish |
| 4327002 | #300 Washer BSX Finish |
| 4357104 | #500 Eyelet BSX Finish |
| 4356889 | #500 Washer BSX Finish |
CATALOGUE
TECHNICAL INFO
YKK and Non – YKK machines and attaching dies can be used to attach this product.
Oeko – Tex Certified.
NOTE
The YKK supplied machines and attaching dyes are required to ensure the appropriate level of attachment.
N6 – Semi Auto machine – 3 500 attachments every 8 hours.
N8 – Fully Auto machine – 14 000 attachments every 8 hours.
