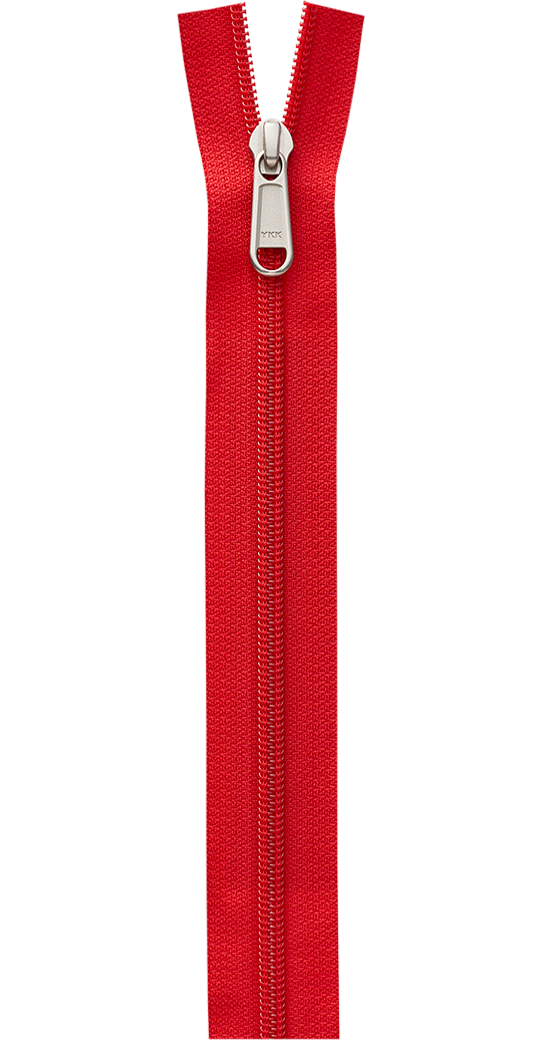

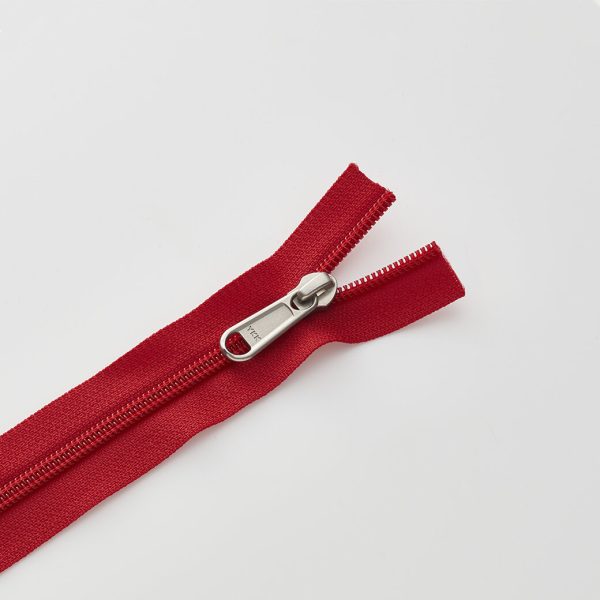

Racquet Coil® Standard
YKK’s Racquet Coil® has been specifically designed for applications (Luggage and Tents) where resistance to abrasion and performance is a must. Racquet Coil® chain is made of spiral plastic elements that feature a unique oval shape. This design strategically places the sewing thread (which attaches to the zipper tape) in an indentation on the oval, thus protecting it from being torn and exposed. The sliders are engineered to ensure the perfect reciprocation of the zip. Racquet Coil® is available in a Polyester tape.
APPLICATION
Please enter ID of the product
Share:
AVAILABILITY
| Chain Type | Close | Open | 2-Way | Chain |
|---|---|---|---|---|
| 5RCF | – | – | – | OK |
| 10RCF | – | – | – | OK |
SLIDER & COLOUR
| Enamel | Enamel | Silver | Antique Brass | Antique Silver | Enamel | Silver | Silver | Antique Brass |
|---|---|---|---|---|---|---|---|---|
| DA1C-BT E | DFL | DFL | DFL | DFL | DWL | DWL | DF9NT2 | DF9NT2 |
SLIDERS
| DA1C | Auto lock |
| DFL | Non lock, single tab |
| DWL | Non lock, double tab |
| DF9NT2 | Non lock, slider body |
HOW TO MEASURE A ZIP LENGTH
| Classification | Dimensions (A) | Dimensions of top tape extension (B) | Dimensions of bottom tape extension (C) |
|---|---|---|---|
| Closed-end zipper | From the top end of the slider to the tip of the bottom stop | From the top stop to the tip of notches of the cut end
|
From the top stop to the tip of notches of the cut end |
| Zipper with double sliders (arranged in head-to-head relation) | From the tip of one bottom stop to the tip of the other bottom stop | From the upper bottom stop to the tip of notches of the cut end
|
From the tip of the bottom stop to the tip of notches of the cut end |
| Zipper with double sliders (arranged in bottom-to-bottom relation) | From the top end of one slider to the top end of the other slider | From the top stop to the tip of notches of the cut end
|
Same as the top tape extension end portion |
| Open-end zipper | From the top end of the slider to the tip of the box | From the top stop to the cut end
|
|
| Two-way separator from the top | From the top end of the slider to the bottom end of the supplementary tape | From the top stop to the cut end
|
|
| Top open zipper | From the top stop to the tip of the box | From the top stop to the cut end
|
|
| Reversible slider | Rather than from the top end, measurements should be made from the shoulder inlet portion of the slider | From the top stop to the cut end, Reversible slider
|
|
| When the top stop does not enter the slider | Measurement should be made from the top stop | From the top stop to the tip of notches of the cut end
|
PRODUCT CODES & DESCRIPTIONS (SA ONLY)
| Code | Product |
|---|---|
| 770615 | 5 RCF CHAIN P16R DYED HANK200 N-ANTI |
| 913816 | 5 RC DA1C-BT E PARTS N-ANTI |
| 564615 | 5 RC DFL E PARTS N-ANTI |
| 571481 | 5 RC DFL N PARTS |
| 564694 | 5 RC DFL I PARTS N-ANTI |
| 4190731 | 5 RC DFL H3 PARTS N-ANTI |
| 604576 | 5 RC DWL N PARTS |
| 562885 | 5 RC DF9NT2 N PARTS |
| 620032 | 5 RC DF9NT2 I PARTS N-ANTI |
| 583454 | 10 RCF CHAIN P19 DYED HANK100 N-ANTI |
| 580233 | 10 RC DFL E PARTS N-ANTI |
| 583453 | 10 RC DFL N PARTS |
| 993153 | 10 RC DFL I PARTS N-ANTI |
| 764074 | 10 RC DWL E PARTS N-ANTI |
| 604535 | 10 RC DWL N PARTS |
| 4275474 | 10 RC DFNT I PARTS N-ANTI |
CATALOGUE
TECHNICAL INFO
The element is uniquely designed allowing for the thread to be strategically placed in an indentation on the oval thus protecting the thread from exposure to abrasive services.
