VISLON® Standard

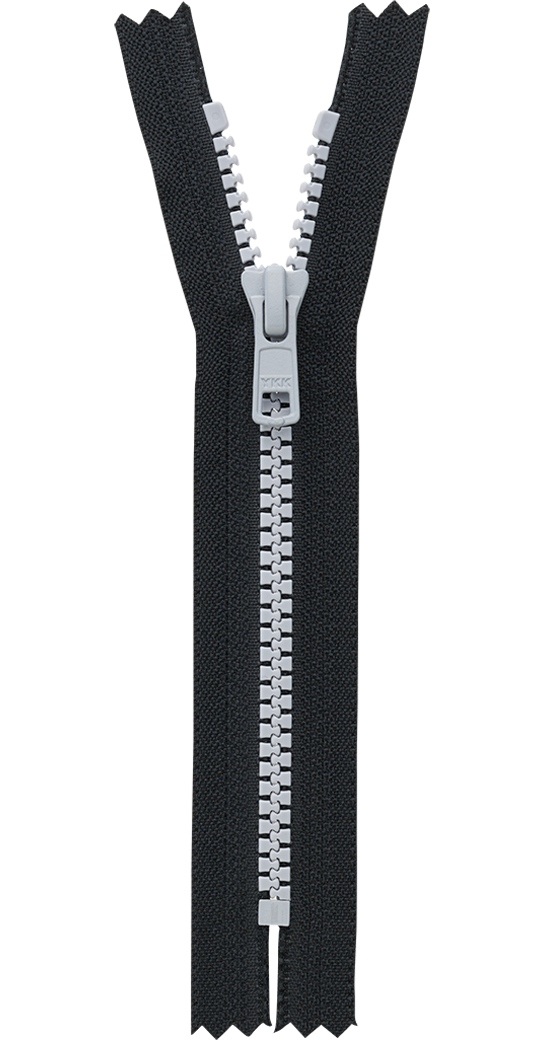

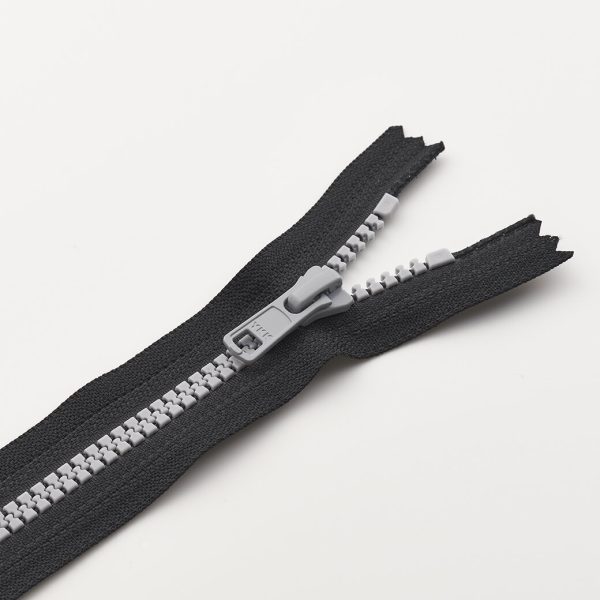

The VISLON® zipper is made of injected plastic elements, such as polyacetal resin. It is lighter than metal zippers of the same size.
Rich element colour variations are created by formulating the colour pigment during the injection process.
APPLICATION
Please enter ID of the product
Share:
AVAILABILITY
| Chain Type | Close | Open | 2-Way | Chain |
|---|---|---|---|---|
| 3VS | OK | OK | OK | OK |
| 4VS | OK | OK | – | OK |
| 5VS | OK | OK | OK | OK |
| 8VS | OK | OK | OK | OK |
| 10VF | OK | OK | OK | OK |
| 15VF | OK | OK | – | OK |
SLIDER & COLOUR
Reference YKK’s colour card.
SLIDERS
DA
TA
TA3
DWL
DFL
HOW TO MEASURE A ZIP LENGTH
| Classification | Dimensions (A) | Dimensions of top tape extension (B) | Dimensions of bottom tape extension (C) |
|---|---|---|---|
| Closed-end zipper | From the top end of the slider to the tip of the bottom stop | From the top stop to the tip of notches of the cut end
|
From the top stop to the tip of notches of the cut end |
| Zipper with double sliders (arranged in head-to-head relation) | From the tip of one bottom stop to the tip of the other bottom stop | From the upper bottom stop to the tip of notches of the cut end
|
From the tip of the bottom stop to the tip of notches of the cut end |
| Zipper with double sliders (arranged in bottom-to-bottom relation) | From the top end of one slider to the top end of the other slider | From the top stop to the tip of notches of the cut end
|
Same as the top tape extension end portion |
| Open-end zipper | From the top end of the slider to the tip of the box | From the top stop to the cut end
|
|
| Two-way separator from the top | From the top end of the slider to the bottom end of the supplementary tape | From the top stop to the cut end
|
|
| Top open zipper | From the top stop to the tip of the box | From the top stop to the cut end
|
|
| Reversible slider | Rather than from the top end, measurements should be made from the shoulder inlet portion of the slider | From the top stop to the cut end, Reversible slider
|
|
| When the top stop does not enter the slider | Measurement should be made from the top stop | From the top stop to the tip of notches of the cut end
|
PRODUCT CODES & DESCRIPTIONS (SA ONLY)
| Code | Product |
|---|---|
| 0002682 | VFC-106 DA E P17 |
| 0002683 | VFC-106 TA EN P17 |
| 0002739 | VFOR-106 DA E P17 |
| 0002740 | VFOR-106 TA EN P17 |
| 0004076 | VSC-5* DA E/DA E P14 |
| 0004084 | VSC-56 TA E P14 |
| 0006076 | VSC-56 DA E P14 |
| 0006601 | VSC-5* DA E/DA E P14 |
| 0013682 | VFOR-105 DWL E P17 |
CATALOGUE
TECHNICAL INFO
NOTE
VISLON® zippers are not recommended for luggage or shoes/boots application.
When using for such application, we strongly recommend for product tests before production. Please consult with your YKK sales representative for more details.
